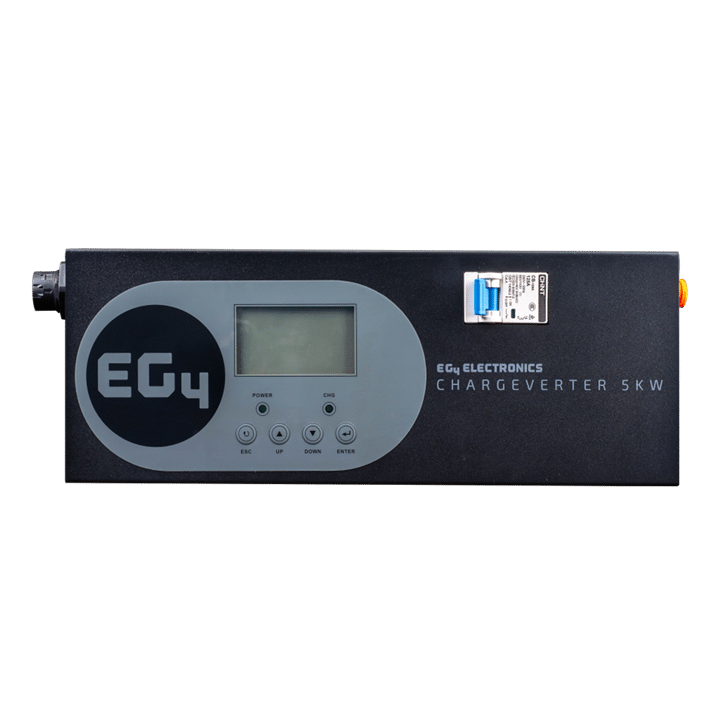

Description About the EG4 Chargeverter GC: Introducing the EG4 Chargeverter 5KW AC Charger, a high-performance battery charger designed for reliability and versatility. With its 48V 100A capacity and 5120W output, this charger ensures efficient power supply for various applications. Its compact design and dual 240/120V input make it suitable for diverse setups. Bad Weather Resilience: Charge batteries during low light conditions using a generator (up to 100A) Ideal for unpredictable weather patterns Protection from “Dirty Power”: Guards against unreliable sine waves from lower-budget generators Protects inverters from power quality issues Charger Output Specifications: Optimized for 240 VAC power supply Nominal Battery Voltage: 48VDC Adjustable Charge Current: 0-100A at 240VAC Adjustable Charge Voltage: 43-57VDC (Default at 54VDC) Maximum Output Watts: 5120W at 240 VAC AC Input Specifications: Plug directly into a generator without concern for power issues AC Input Voltage Range: 90-264VAC Maximum Input Amps: 26A at 240VAC, 28A at 120VAC Dry Contacts: Control of generator start/stop function based on Voltage or state of charge (SOC) Using EG4 Batteries? Closed loop communication with EG4 batteries for charging based on battery state of charge (SOC), when batteries are not in communication with the inverter Manuals and Downloads EG4® Chargeverter GC Manual EG4® Chargeverter GC Spec Sheet
