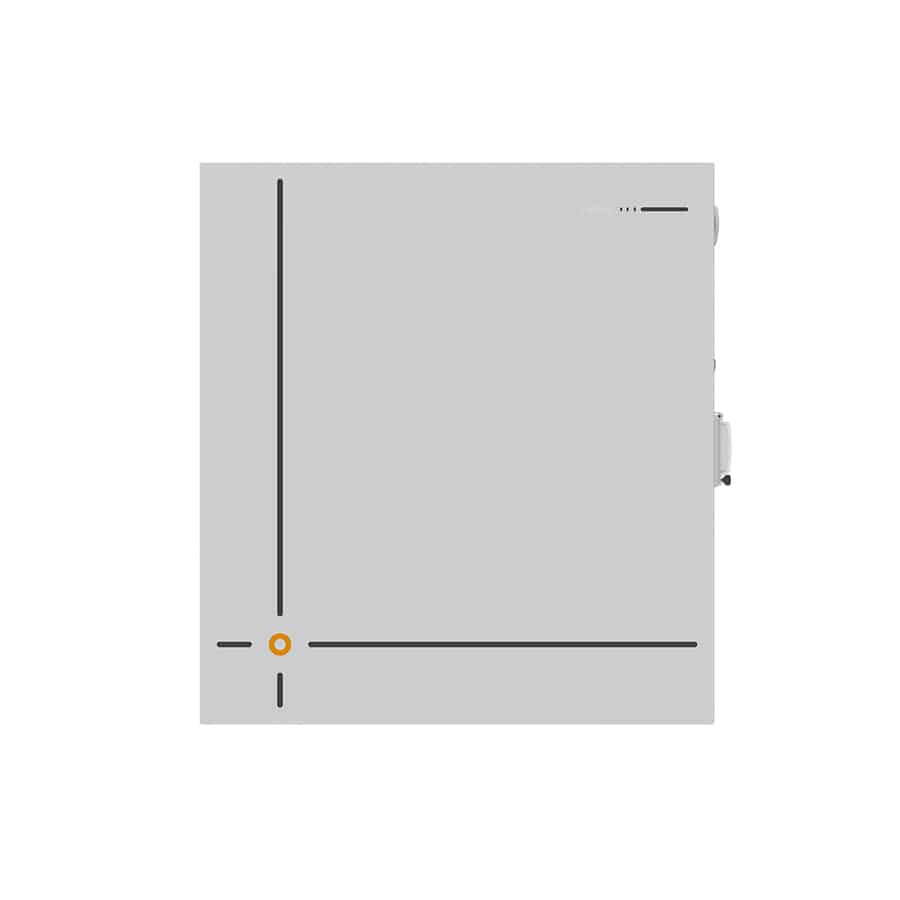

PYTES Energy V16 Wall Mount 48V 314 Ah LiFePO4 Battery Pack

Description The V16 is a 51.2V wall-mounted LFP battery delivering 16.07kWh energy and up to 10.24kW output, engineered for professional residential and light commercial energy storage projects. Installer-Friendly With robust outdoor protection, wide inverter compatibility, and an installer-friendly design, V16 helps distributors and installers deploy reliable systems with confidence and efficiency. Safe & Reliable With an IP66-rated enclosure and an integrated heating system, V16 can be safely installed outdoors and operated reliably in harsh or cold environments. Installers no longer need to add protective cabinets or worry about temperature-related performance issues, helping projects move forward even when indoor space is limited. Compatible with Most Inverters Supporting RS485, CAN, WiFi, and dry contact communication, V16 enables closed-loop communication with most mainstream inverter brands. This significantly reduces compatibility concerns during system design, shortens commissioning time on-site, and lowers the risk of integration issues after installation. Integrated Design V16 integrates a DC circuit breaker, pre-charge circuit, and aerosol fire suppression module into the battery itself. By reducing the need for external safety components, installers benefit from cleaner system layouts, fewer wiring points, and lower installation error rates—while distributors gain a product that is easier to standardize across projects. Key Features Nominal Voltage: 512V Nominal Capacity: 314Ah Nominal Energy: 16.077kWh Operating Voltage Range: 46.5V~56.8V Recommended Charge Current: 125A (6.4kW) Recommended Discharge Current: 150A (7.68k) Maximum Discharge Current: 200A (10.24kW) Documentation PYTES V16 Datasheet PYTES V10 & V16 Selection Guide PYTES V16 Manual PYTES V16 Terms of Warranty
