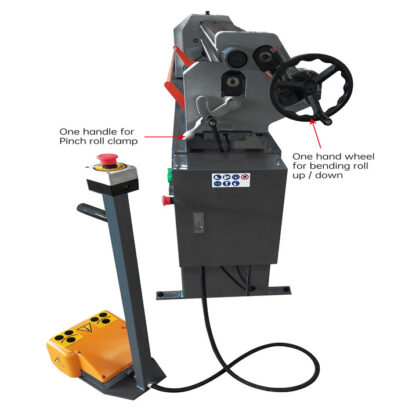

Description FEATURES ISO 9001 certified One handle for pinch roll clamping One handwheel for bending roll up/down Cone attachment to make various size cone parts Heavy welded all steel construction for maximum rigidity Silence electrical motor Quick release top roller Two rolls are driven Precision ground rollers 1″ roll opening All three rolls are made of high grade alloy steel, hardened All rolls run forward and reverse Safety type removable foot pedal Overload protection and disconnect switch One year warranty for parts STANDARD EQUIPMENT: Cone attachment Electrical cabinet Removable safety foot pedal SPECIFICATIONS: Length of Rolls 4′ Length of Rolls 50″ Roll Diameter 3″ Rolling Capacity – Mild Steel 16 gauge Rolling Capacity – Stainless Steel 20 gauge Rolling Capacity – Soft aluminum 11 gauge Min. Thickness 26 gauge Min. Roll Bending Diameter Capacity 3.5″ (3) Grooves size 5/16 in., 3/8 in., 1/2 in. Rolls Opening 0.25″ Roll Speed 201 in/min. Power 1.5 hp Phase 1-Phase Voltage 220V Dimensions 68 x 28 x 47 in. Weight 837 lbs Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts Machine Photo May Include Optional Equipment Product image is only a representation, actual product appearance may differ slightly
