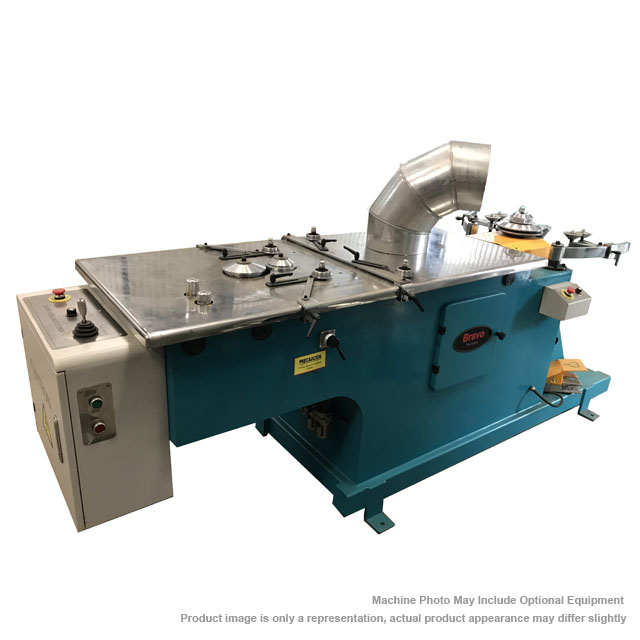

Description Bravo gore locking machine. Make your own elbows….and cost effectively! Consider the Bravo Hydraulic Round Elbow Machine. Two stations on one machine, one for flanging and the other for closing. The machine is always ready to go, No tool change required. Produce standing lock seams and reducers fast, easy and affordable. On par with but a fraction of the cost of the popular brand. A great, complementary machine to our Spiral Duct Forming Machine. SPECIFICATIONS: Diameter Range 5″ to 50″ Max segment angel 30 degrees (90 degree elbow, 4 parts) Material Thickness galvanized steel 0.4 – 1.2 mm (26 – 18 Ga) Flanging Speed Max. Adjustable to 120 m/min. (394 fpm) Production Time 90 sec. (bend ø 200 mm, 90°/4 segments) Electrical Connection 4KW, 220volts/3phase/60Hz Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR
