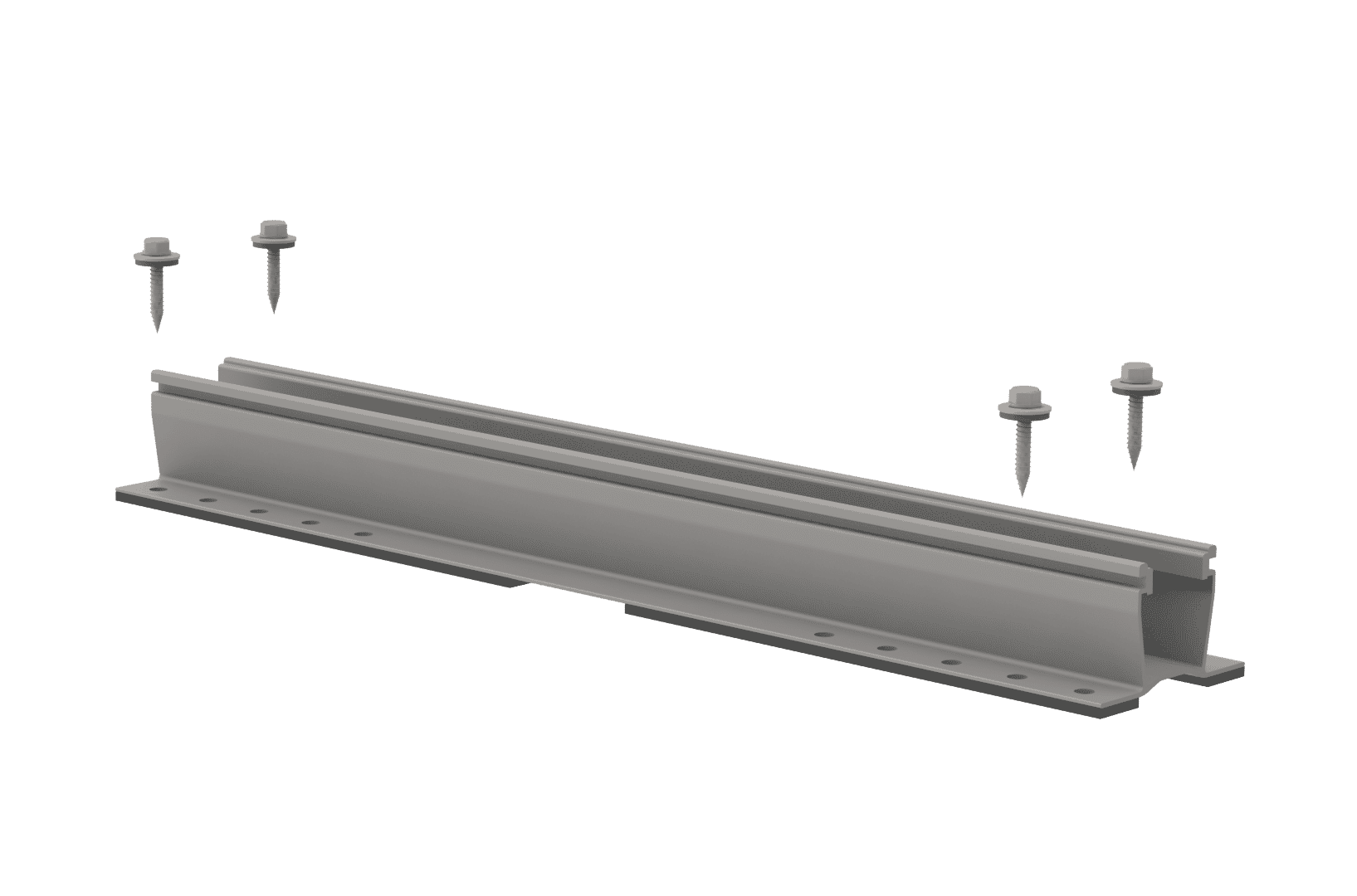

Description About the Minirail XPRess Kit: The MiniRail XPRess mounting system for solar modules is designed specifically for trapezoidal sheet metal roofs. Coming in small lengths of rail (17 inches) allow maximum flexibility and ease of installation. 17-inch sections of rail with EPDM backing to reduce the chance of water intrusion Comes with K2 Self-tapping stainless screws that also have an EPDM washer to reduce the chance of water intrusion Can be used on metal sheet roofs as thin as 29 gauge Add Pre-assembled K2 universal (30-50mm) mid and end clamps with integrated bonding Integrated bonding eliminates the need for bonding jumpers UL 2703 Listed for bonding TECHNICAL DATA How to Install: Place MiniRail XPRess Base on trapezoidal roof and screw into the peaks of the roof MiniRail XPRess Rail: Aluminium, with EPDM MiniRail XPRess Base Dimensions: (WxH) 73mm x 44.18mm MiniRail XPRess Base Length: (L) 17in Downloads and Literature: MiniRailXPRess Tech Sheet MiniRailXPRess Assembly Instructions
